| ชื่อแบรนด์: | NONE |
| หมายเลขรุ่น: | 2.0 มม.-50.0 มม |
| MOQ: | 1 รีด |
| ราคา: | negotiable |
| เงื่อนไขการชำระเงิน: | t/t, d/p, d/a, l/c |
| ความสามารถในการจัดหา: | 100,000 รีล/วัน |
Description :
Our marker sleeves is a flattened , heat shrinkable tubing intended for wire and cable harness identification . It can also be used for applications where limited fire hazard characteristics are necessary . When our product is printed with Woer recommended printers and ink ribbons , the marks remain legible , durable , even when exposed to abrasion , aggressive cleaning solvents , and industrial fluids .
Comparation :
Compare with the tranditional paper labels , our marker sleeves are wear resistant , solvent resisant , and aging resistant , will not fall off or fade.
Compare with the tranditional painted markings , our products have higher accuracy , will not pollute the carrier , and can also serve as insulation protection at the same time .
Compare with the tranditional PVCsleeves , our sleeves shrink more tightly , has stronger flame retardancy and heat resistance , and is more environmentally friendly .
Application Fields :
It covers high areas such as military industry , aerospace , rail transit , and shipbuilding . It is also used for liine and pipeline identification in power , chemical , communication , construction , and financial information systems , as well as for classification and identification of tools .
Packaging and Transportation :
Our products generally sealed and moisture proof plastic bags or cardboard boxes are used for packaging . Products are separated and arranged according to their specifications to prevent dedormation from compression . During transportation , exposure to intense sunligh and rain shold be avoided , and damage from sharp objects should be prevented . The storage environment temperature should not exceed 50C .
After sales service :
Customization of printing , specifications , and colors is supported , along with free sample testing . For non human caused issues such as label peeling or shrinkage failure , returns and exchanges are available . Additionally , technical guidance is provided to assist in resolving heating and printing problems during use .
Feature :
| Material | The sleeving shall be fabricated from irradiated , thermally stabilized and flame retarded modified polyolefin compound containing no halogens or cadmium in the formulation |
| Application range | commercial , industrial environment |
| Operating temperature range | -55°C~+125°C |
| Minimum recovery temperature | +125°C |
| Maximum storage temperature | +50°C |
| Shrink ratio | 2:1 |

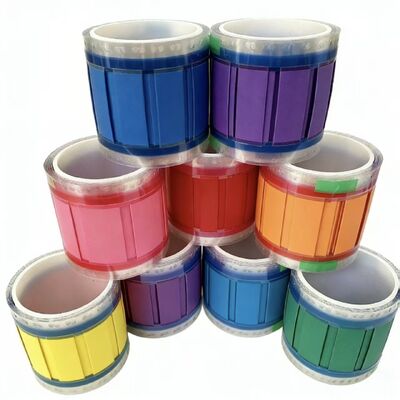

| Color | White , Yellow , other color is available if ordered |
| Printing mode | Single sided printing and Double sided printing formats available |

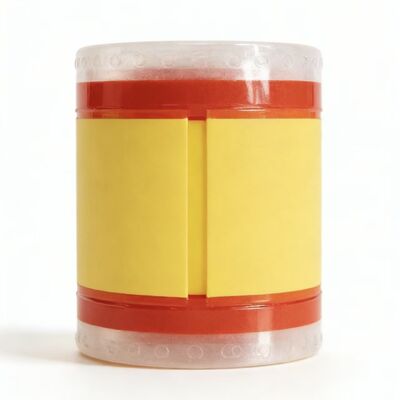

| Supplied mode | Either Continuous type or Ladder format type is available |
| Recommended Printers | Thermal transfer printer |
| Recommended Ribbons | N85 resin ribbon , Black , 100mm ( width ) * 300m ( length ) |
Dimensions :
| Part Number | As Supplied ( mm) | After Recovery ( mm ) | |||
| ID ( D ) | Flatten Width ( W) | Double Wall Thickness | ID ( d ) | Single Wall Thickness | |
| -2.4- | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | ≤1.18 | 0.49±0.06 |
| -3.2- | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.59 | 0.51±0.06 |
| -4.8- | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤2.36 | 0.54±0.06 |
| -6.4- | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤3.18 | 0.56±0.06 |
| -9.5- | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | ≤4.75 | 0.59±0.06 |
| -12.7- | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | ≤6.35 | 0.60±0.07 |
| -19.0- | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | ≤9.53 | 0.62±0.07 |
| -25.0- | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | ≤12.70 | 0.63±0.07 |
| -38.0- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤19.10 | 0.64±0.07 |
| -51.0- | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | ≤25.40 | 0.64±0.08 |
Package Information :
| Ordering Size ( 2:1 ) | Ladder Format Type | Continuous Type |
| Small Box Packing ( PCS/Box ) | A-Paper reel Packing ( m/reel ) | |
| 2.4 | 2500 | 50 |
| 3.2 | 2000 | 100 |
| 4.8 | 2000 | 100 |
| 6.4 | 2000 | 100 |
| 9.5 | 10000 | 100 |
| 12.7 | 100 | 100 |
| 19.0 | 500 | 100 |
| 25.0 | 500 | 100 |
| 38.0 | 500 | 50 |
| 51.0 | 250 | 50 |
