High Current Busbar Tube 35mm Cross-linked Polyolefin Electrical Insulation Tubing Designed for Power Transmission

Product Description:

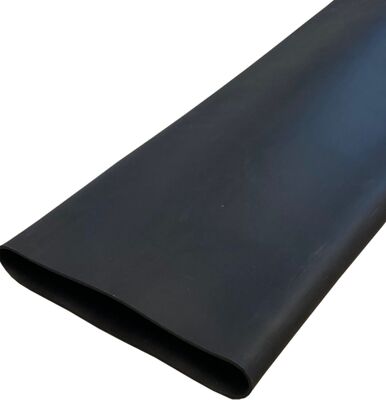

This 1KV busbar heat shrink tube is a special insulating protection product for low-voltage electrical equipment, made of high-energy electron beam radiation cross-linked polyolefin material. It complies with RoHS environmental standards and GB/T 1059-2007 standard, with a heat shrink ratio of 2:1, minimum shrink temperature ≥84℃, full shrink temperature ≥120℃ and long-term operating temperature range from -55℃ to 125℃. Featuring high dielectric strength, electrical tracking resistance, flame retardancy and low smoke emission, it has excellent flexibility and is suitable for both straight and bent busbars. It tightly adheres to the surface of copper and aluminum busbars after heating, effectively achieving insulation, anti-corrosion, anti-oxidation and mechanical protection, and can reduce phase spacing with easy installation. With a full range of specifications and standard colors of red, yellow and green optional, it is widely used in low-voltage distribution systems such as switch cabinets, distribution cabinets and substations, providing stable and reliable protection for busbars of 1KV and below.

Features:

• Product Name: Busbar Tube
• Wall Thickness: 1.2mm for durable protection
• Feature: Protects against accidental flashover
• Standards Compliance: Meets IEC 61439 and UL 67
• Function: Reduces bus bar clearance requirements
• Dimensions: Customizable to fit specific needs
• Provides excellent busbar insulation and busbar covering

Technical Parameters:

Applications:

The WOER Busbar Tube, available in model numbers ranging from 15mm to 200mm, is a high-quality product originating from China and certified under ISO9001 standards. Designed to provide superior busbar shielding, busbar insulation, and busbar covering, this product is ideal for a wide range of industrial and commercial applications where safety and efficiency are paramount. Manufactured from durable cross-linked polyolefin, the busbar tube offers excellent protection against accidental flashover, ensuring reliable performance in environments handling high current loads.

One of the primary application occasions for the WOER Busbar Tube is in electrical substations and switchgear assemblies, where it serves as an insulating barrier around busbars. This helps to prevent accidental contact and short circuits, enhancing operational safety. Its customizable rectangular shape and dimensions allow it to fit perfectly around busbars of various sizes, making it highly versatile for different electrical setups. The product’s robust insulation properties make it suitable for use in power distribution panels, industrial machinery, and renewable energy installations where dependable busbar covering is essential.

In manufacturing plants and heavy industries, the WOER Busbar Tube is widely used to shield busbars from environmental factors such as dust, moisture, and mechanical impact. This prolongs the lifespan of electrical components and reduces maintenance costs. Additionally, its ability to withstand high current loads makes it indispensable in applications involving large electrical currents, such as in transformers and motor control centers.

Thanks to the efficient supply ability of 100000 meters per day, with a minimum order quantity of just 1 meter, and a fast delivery time of 2-4 days, WOER ensures that customers receive their busbar tubes promptly. The product is conveniently packed in cartons and is available at negotiable prices with TT in advance payment terms, making it accessible for both small-scale and large-scale projects.

Overall, the WOER Busbar Tube is an excellent choice for anyone seeking reliable busbar insulation, busbar shielding, and busbar covering solutions. Its customizable dimensions, high-quality cross-linked polyolefin material, and safety features provide peace of mind in various electrical applications, ensuring both protection and efficiency in busbar installations.
